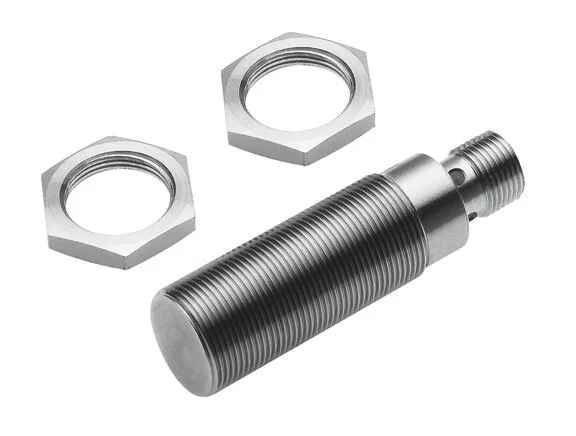

Festo - SIEH-M18B-NS-S-L-CR-538257 - Proximity Switch

SKU: festo-sieh-m18b-ns-s-l-cr-538257

Browse all parts
Festo - SIEH-M18B-NS-S-L-CR-538257 - Proximity Switch

€175.91€150.35 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€175.91

Brand
Festo
Size
M18
Permission
c UL us - Listed (OL)
Control Output
NPN
Fastening Type
With locking nut
Hysteresis (mm)
1,22
Residual Ripple
20%
Housing Material
High-alloyed steel
Integration Type
flush
Voltage Drop (V)
2
Reduction Factors
Stahl St 37 = 1,0
Protection Category
IP69K
Complies To Standard
EN 60947-5-2
Empty Run Current (mA)
17
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
200
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 70
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Inductive Protection Circuit
und Schaltfrequenz < 10Hz
Secured Safety Distance (mm)
8,10
Max. Switching Frequency (Hz)
200
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
10 to 30
Sensor Integration Strength (bar)
60
Measurement Switching Distance (mm)
10
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften (UK-R)
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568175474
Manufacturer
Festo
