Festo - SIEN-M30B-NS-S-L-150433 - Proximity Switch

SKU: festo-sien-m30b-ns-s-l-150433

Browse all parts

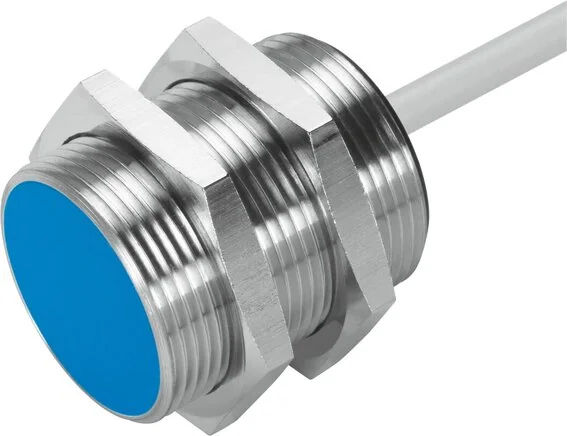

Festo - SIEN-M30B-NS-S-L-150433 - Proximity Switch

€106.63€91.14 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€106.63

Brand
Festo
Size
M30x1,5
Permission
c UL us - Listed (OL)
Torque (Nm)
40
Material Note
RoHs compliant
Control Output
NPN
Fastening Type
With locking nut
Hysteresis (mm)
1,1
Residual Ripple
± 20 %
Housing Material
chrome-plated
Integration Type
flush
Voltage Drop (V)
2
Reduction Factors
Stahl St 37 = 1,0
Repeatability (mm)
0,50
Protection Category
IP67
Complies To Standard
EN 60947-5-2
Empty Run Current (mA)
10
LABS (PWIS) Conformity
VDMA24364-B2-L
Degree Of Contamination
3
Max. Output Current (mA)
200
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 70
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Surge Voltage Strength (kV)
0,8
Secured Safety Distance (mm)
8,10
Max. Switching Frequency (Hz)
1200
Operating Voltage Range DC (V)
10 to 30
Measurement Switching Distance (mm)
10
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften (UK-R)
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568069438
Manufacturer
Festo
