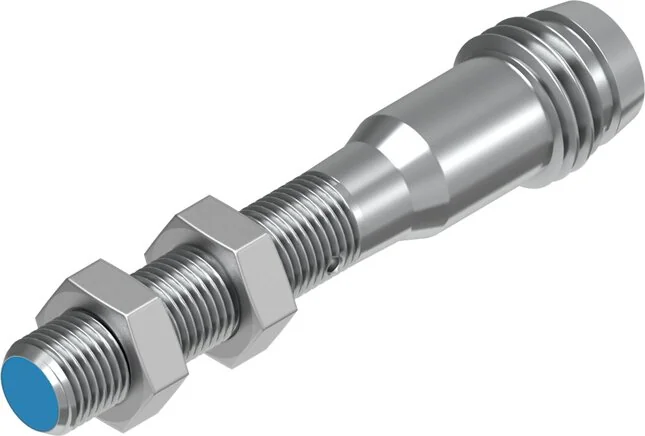

Festo - SIEN-M5B-NS-S-L-150369 - Proximity Switch

SKU: festo-sien-m5b-ns-s-l-150369

Browse all parts
Festo - SIEN-M5B-NS-S-L-150369 - Proximity Switch

€117.64€100.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€117.64

Brand
Festo
Size
M5x0,5
Permission
c UL us - Listed (OL)
Torque (Nm)
1,5
Material Note
RoHs compliant
Control Output
NPN
Fastening Type
With locking nut
Housing Material
High-alloyed stainless steels
Integration Type
flush
Protection Category
IP67
Complies To Standard
EN 60947-5-2
LABS (PWIS) Conformity
VDMA24364-B2-L
Degree Of Contamination
3
Max. Output Current (mA)
200
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 70
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Surge Voltage Strength (kV)
1
Max. Switching Frequency (Hz)
5000
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Operating Voltage Range DC (V)
10 to 30
Measurement Switching Distance (mm)
0,8
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
Repeatability At Constant Conditions (mm)
0.01
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften (UK-R)
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568068790
Manufacturer
Festo
