Festo - SIEN-M8B-PS-K-L-150386 - Proximity Switch

SKU: festo-sien-m8b-ps-k-l-150386

Browse all parts

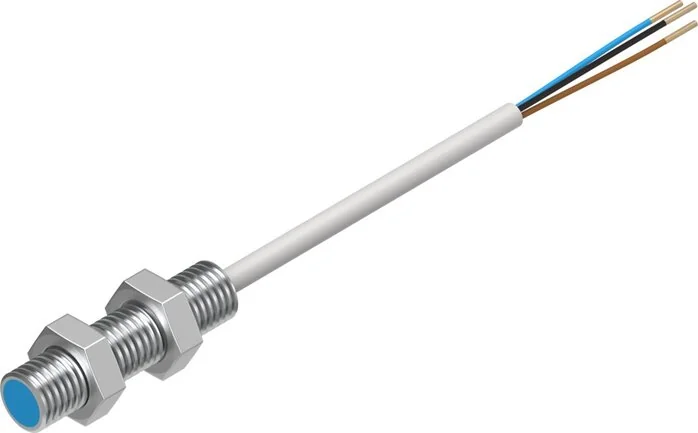

Festo - SIEN-M8B-PS-K-L-150386 - Proximity Switch

€97.51€83.34 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€97.51

Brand
Festo
Size
M8x1
Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Control Output
PNP
Fastening Type
With locking nut
Hysteresis (mm)
0,07
Residual Ripple
± 10%
Cable Length (m)
2,5
Housing Material
High-alloyed stainless steels
Integration Type
flush
Voltage Drop (V)
2
Reduction Factors
Stahl St 37 = 1,0
Protection Category
IP67
Complies To Standard
EN 60947-5-2
Cable Sleeve Material
TPE-U(PUR)
Empty Run Current (mA)
10
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
200
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 70
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Inductive Protection Circuit
Integrated
Secured Safety Distance (mm)
1,21
Max. Switching Frequency (Hz)
5000
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
10 to 30
Measurement Switching Distance (mm)
1,5
Electrical Connection 1, Connection Type
cable
Repeatability At Constant Conditions (mm)
0.07
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften (UK-R)
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568068967
Manufacturer
Festo
