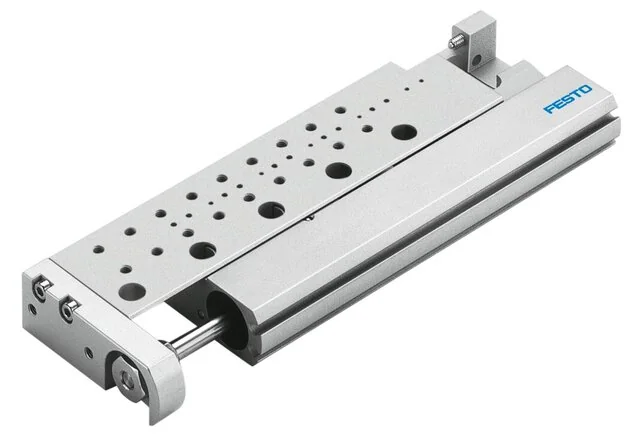

Festo - SLF-6-30-P-A-170505 - Mini Slide

€858.49€733.75 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€858.49

Brand
Festo
Guide
Ball cage guide
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
30
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Fastening Type
With throughway bores
Piston Ø (mm)
6
Seals Material
HNBR
Moving Mass (g)
48
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
130
Max. Force Fz (N)
130
Position Detection
For proximity switch
Construction Set Up
Schlitten
Max. Torque Mx (Nm)
1,1
Max. Torque My (Nm)
1,1
Max. Torque Mz (Nm)
0,7
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (MPa)
0,15 to 1
Ambient Temperature (°C)
-20 to 60
Operating Mode, Drive Unit
Joch
Base Weight At 0 mm Stroke (g)
138
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,016
Alignable End Position range/Length (mm)
5
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
13
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
17
EAN
4052568139117
Manufacturer
Festo
