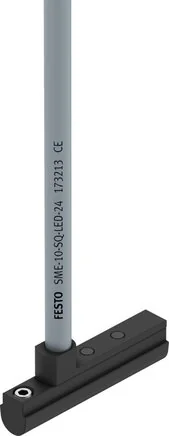

Festo - SME-10-SQ-LED-24-173213 - Proximity Switch

SKU: festo-sme-10-sq-led-24-173213

Browse all parts
Festo - SME-10-SQ-LED-24-173213 - Proximity Switch

€78.68€67.25 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€78.68

Brand
Festo
Design
For round nut
Permission
RCM mark
Torque (Nm)
0,1
Material Note
RoHs compliant
Control Output
Bipolar contact
Fastening Type
längs in Nut einschiebbar
Housing Colour
black
Cable Length (m)
0,3
Housing Material
High-alloyed stainless steels
Voltage Drop (V)
0
Measured Parameter
Position
Overload Resistant
Not available
Repeatability (mm)
0,2
Cable Shield Colour
Grey
Protection Category
IP67
Switch On Time (ms)
0,6
Complies To Standard
EN 60947-5-2
Switch Off Time (ms)
0,05
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Reed magnetic
Insulation Voltage (V)
50
LABS (PWIS) Conformity
VDMA24364-B2-L
Degree Of Contamination
3
Max. Output Current (mA)
100
Short Circuit Resistance
no
Ambient Temperature (°C)
-20 to 70
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
horizontal
Reverse Polarity Protection
no
Surge Voltage Strength (kV)
0,8
Max. Switching Frequency (Hz)
500
Max. Switching Capacity DC (W)
1
Operating Voltage Range AC (V)
12 to 27
Operating Voltage Range DC (V)
12 to 27
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Cable with plug
Electrical Connection 1, Connection Pattern
991155
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568074623
Manufacturer
Festo
