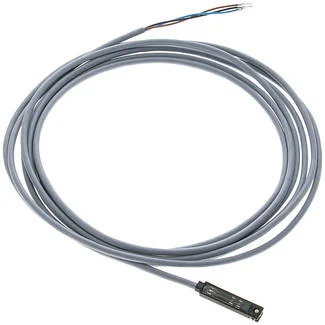

Festo - SME-8-K-LED-24-150855 - Proximity Switch

SKU: festo-sme-8-k-led-24-150855

Browse all parts
Festo - SME-8-K-LED-24-150855 - Proximity Switch

€59.35€50.73 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€59.35

Brand
Festo
Design
For T-slot
Permission
RCM mark
Torque (Nm)
0,2
Material Note
RoHs compliant
Control Output
Bipolar contact
Fastening Type
längs in Nut einschiebbar
Housing Colour
black
Cable Length (m)
2,5
Housing Material
High-alloyed stainless steels
Voltage Drop (V)
0
Measured Parameter
Position
Overload Resistant
Not available
Repeatability (mm)
0,2
Cable Shield Colour
Grey
Protection Category
IP67
Switch On Time (ms)
0,5
Complies To Standard
EN 60947-5-2
Switch Off Time (ms)
0,03
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Reed magnetic
Insulation Voltage (V)
50
LABS (PWIS) Conformity
VDMA24364-B2-L
Degree Of Contamination
3
Max. Output Current (mA)
500
Short Circuit Resistance
no
Ambient Temperature (°C)
-40 to 60
Max. Switching Capacity AC
10
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Reverse Polarity Protection
no
Surge Voltage Strength (kV)
0,8
Inductive Protection Circuit
adjusted to MZ, MY, ME coils
Max. Switching Frequency (Hz)
800
Max. Switching Capacity DC (W)
10
Operating Voltage Range AC (V)
12 to 30
Operating Voltage Range DC (V)
12 to 30
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
-5 to 60
EAN
4052568010409
Manufacturer
Festo
