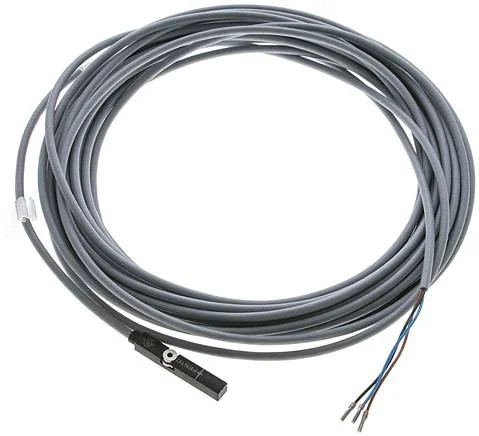

Festo - SME-8M-DS-24V-K-0,3-M8D-543861 - Proximity Switch

SKU: festo-sme-8m-ds-24v-k-0-3-m8d-543861

Browse all parts
Festo - SME-8M-DS-24V-K-0,3-M8D-543861 - Proximity Switch

€50.03€42.76 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€50.03

Brand
Festo
Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Control Output
Bipolar contact
Fastening Type
Insertable from above into the slot
Line Properties
Standard/ energiekettentauglich
Cable Length (m)
0,3
Housing Material
High-alloyed stainless steels
Special Features
Oil resistant
Voltage Drop (V)
1,17
Overload Resistant
Not available
Protection Category
IP68
Screw Lock Material
brass, nickel-plated
Test Conditions Line
Energiekette: > 5 Millionen Zyklen, Biegeradius 75 mm
Cable Sleeve Material
TPE-U(PUR)
Measurement Principle
Reed magnetic
Plug Housing Material
TPE-U(PU)
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Copper alloy gold plated
Max. Output Current (mA)
500
Short Circuit Resistance
no
Ambient Temperature (°C)
-40 to 70
Max. Switching Capacity AC
10
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Reverse Polarity Protection
no
Max. Switching Capacity DC (W)
10
Operating Voltage Range AC (V)
5 to 30
Operating Voltage Range DC (V)
5 to 30
Electrical Connection 1, Fastening Type
drehbar
Electrical Connection 1, Connection Type
Cable with plug
Max. Output Current In Fastening Sets (mA)
80
Electrical Connection 1, Connection Pattern
991155
Max. Switching Capacity AC In Fastening Sets
2,4
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
Max. Switching Capacity DC In Fastening Sets (W)
2,4
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar/nicht drehbar
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568091774
Manufacturer
Festo
