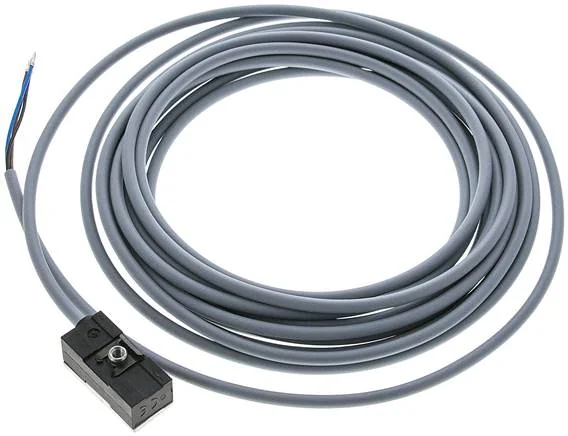

Festo - SMEO-1-LED-24-K5-B-151672 - Proximity Switch

SKU: festo-smeo-1-led-24-k5-b-151672

Browse all parts
Festo - SMEO-1-LED-24-K5-B-151672 - Proximity Switch

€161.57€138.09 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€161.57

Brand
Festo
Design
Block structure
Permission
RCM mark
Material Note
RoHs compliant
Control Output
Bipolar contact
Fastening Type
With Accessories
Housing Colour
black
Cable Length (m)
5
Housing Material
Steel
Measured Parameter
Position
Overload Resistant
Not available
Repeatability (mm)
0,2
Cable Shield Colour
Grey
Protection Category
IP67
Switch On Time (ms)
0,5
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Reed magnetic
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (A)
1000
Short Circuit Resistance
no
Ambient Temperature (°C)
-20 to 70
Max. Switching Capacity AC
27
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Reverse Polarity Protection
no
Max. Switching Frequency (Hz)
500
Max. Switching Capacity DC (W)
27
Operating Voltage Range AC (V)
12 to 27
Operating Voltage Range DC (V)
12 to 27
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568069995
Manufacturer
Festo

Be the first to write a review!
