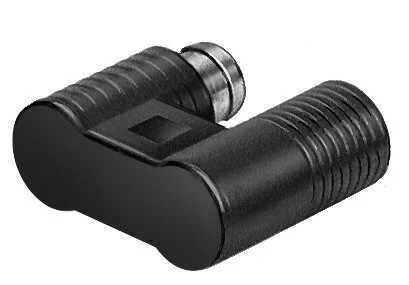

Festo - SMEO-4U-S-LED-24B-151526 - Proximity Switch

SKU: festo-smeo-4u-s-led-24b-151526

Browse all parts
Festo - SMEO-4U-S-LED-24B-151526 - Proximity Switch

€122.77€104.93 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€122.77

Brand
Festo
Design
round
Permission
RCM mark
Control Output
Bipolar contact
Fastening Type
With Accessories
Residual Ripple
10%
Housing Material
PET
Repeatability (mm)
0,2
Protection Category
IP67
Switch On Time (ms)
0,5
Switch Off Time (ms)
0,03
Installation Position
arbitrary
Measurement Principle
Reed magnetic
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
500
Short Circuit Resistance
no
Ambient Temperature (°C)
-20 to 60
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Reverse Polarity Protection
no
Inductive Protection Circuit
adjusted to MZ, MY, ME coils
Max. Switching Frequency (Hz)
800
Max. Switching Capacity DC (W)
10
Operating Voltage Range DC (V)
12 to 27
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
Electrical Connection 1, Connection Pattern
991155
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
EAN
4052568069971
Manufacturer
Festo
