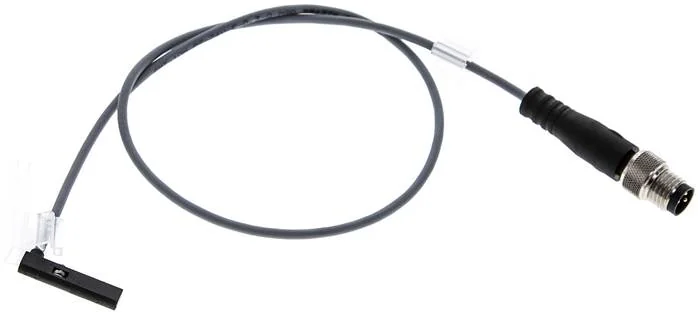

Festo - SMT-10M-PS-24V-E-0,3-Q-M8D-551376 - Proximity Switch

SKU: festo-smt-10m-ps-24v-e-0-3-q-m8d-551376

Browse all parts
Festo - SMT-10M-PS-24V-E-0,3-Q-M8D-551376 - Proximity Switch

€64.17€54.85 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€64.17

Brand
Festo
Design
For round nut
Permission
RCM mark
Material Note
halogenfrei
Control Output
PNP
Fastening Type
Insertable from above into the slot
Housing Colour
black
Line Properties
energiekettentauglich/ robotertauglich
Residual Ripple
10%
Cable Length (m)
0,3
Housing Material
High-alloyed stainless steels
Special Features
Oil resistant
Voltage Drop (V)
1,7
Measured Parameter
Position
Overload Resistant
yes
Repeatability (mm)
0,2
Cable Shield Colour
Grey
Protection Category
IP68
Screw Lock Material
brass, nickel-plated
Switch On Time (ms)
1,3
Complies To Standard
EN 60947-5-2
Switch Off Time (ms)
4,2 to 7,3
Test Conditions Line
Energiekette: > 5 Millionen Zyklen, Biegeradius 28 mm
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Magnetoresistive
Plug Housing Material
TPE-U(PU)
Residual Current (mA)
0,05
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
brass, Gold plated
Max. Output Current (mA)
100
Short Circuit Resistance
yes
Ambient Temperature (°C)
-40 to 70
Insulation Sleeve Material
PP
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
horizontal
Max. Tightening Torque (Nm)
0,4
Reverse Polarity Protection
for all electrical connections
Max. Switching Frequency (Hz)
130
Max. Switching Capacity DC (W)
2,8
Operating Voltage Range DC (V)
5 to 30
Rated Operating Voltage DC (V)
24
Electrical Connection 1, Fastening Type
drehbar
Electrical Connection 1, Connection Type
Cable with plug
Max. Output Current In Fastening Sets (mA)
50
Electrical Connection 1, Connection Pattern
991155
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
Max. Switching Capacity DC In Fastening Sets (W)
1,5
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar/nicht drehbar
Ambient Temperature For Moving Cable Placements (°C)
-20 to 70
Cleanroom Suitability, Measured According To ISO 14644-14
Statisch installiertes Element, keine sinnvolle Bewertung möglich nach ISO 14644-1
EAN
4052568094768
Manufacturer
Festo
