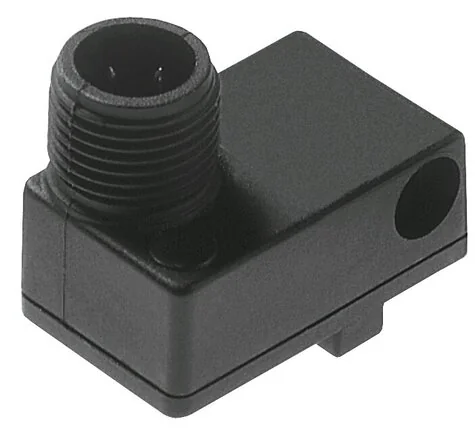

Festo - SMTO-8E-NS-M12-LED-24-171176 - Proximity Switch

SKU: festo-smto-8e-ns-m12-led-24-171176

Browse all parts
Festo - SMTO-8E-NS-M12-LED-24-171176 - Proximity Switch

€68.19€58.28 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€68.19

Brand
Festo
Design
For T-slot
Permission
RCM mark
Torque (Nm)
0,5
Material Note
RoHs compliant
Control Output
NPN
Fastening Type
Insertable from above into the slot
Housing Colour
black
Residual Ripple
10%
Housing Material
High-alloyed stainless steels
Voltage Drop (V)
1,8
Based On Standard
EN 60947-5-2
Measured Parameter
Position
Overload Resistant
yes
Repeatability (mm)
0,2
Protection Category
IP67
Switch On Time (ms)
1,3
Switch Off Time (ms)
7,3
Installation Position
arbitrary
Measurement Principle
Magnetoresistive
Residual Current (mA)
0,15
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
brass, Gold plated
Max. Output Current (mA)
100
Short Circuit Resistance
yes
Ambient Temperature (°C)
-20 to 60
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
horizontal
Reverse Polarity Protection
for all electrical connections
Inductive Protection Circuit
adjusted to MZ, MY, ME coils
Max. Switching Frequency (Hz)
130
Max. Switching Capacity DC (W)
2,8
Operating Voltage Range DC (V)
10 to 30
Max. Tightening Torque Plug (Nm)
0,5
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
Electrical Connection 1, Connection Pattern
995573
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
3
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
EAN
4052568074524
Manufacturer
Festo
