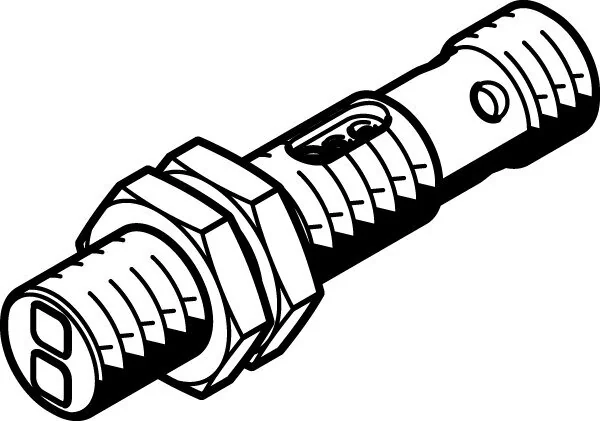

Festo - SOEG-RT-M12-NS-S-2L-547907 - Reflective Light Scanner

SKU: festo-soeg-rt-m12-ns-s-2l-547907

Browse all parts
Festo - SOEG-RT-M12-NS-S-2L-547907 - Reflective Light Scanner

€169.22€144.63 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€169.22

Brand
Festo
Size
M12
Design
round
Light Type
red
Permission
c UL us - Listed (OL)
Range (mm)
70 to 300
Torque (Nm)
10
Control Output
NPN
Fastening Type
With locking nut
Hysteresis (mm)
30
Residual Ripple
20%
Setting Options
Poti
Housing Material
chrome-plated
Voltage Drop (V)
2
Measured Parameter
Position
Measurement Process
diffuse-reflective photoelectric sensor
Protection Category
IP67
Complies To Standard
EN 60947-5-2
Electrical Connection
Plug
Installation Position
arbitrary
Measurement Principle
Optoelectronic
Empty Run Current (mA)
15
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Output Current (mA)
200
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 55
Functional Reserve Display
LED green
Switching Element Function
Bright switching
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Max. Switching Frequency (Hz)
1000
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
10 to 36
Settings Range Lower Limit (mm)
70
Settings Range Upper Limit (mm)
300
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Ambient Temperature For Moving Cable Placements (°C)
-5 to 55
EAN
4052568189228
Manufacturer
Festo
