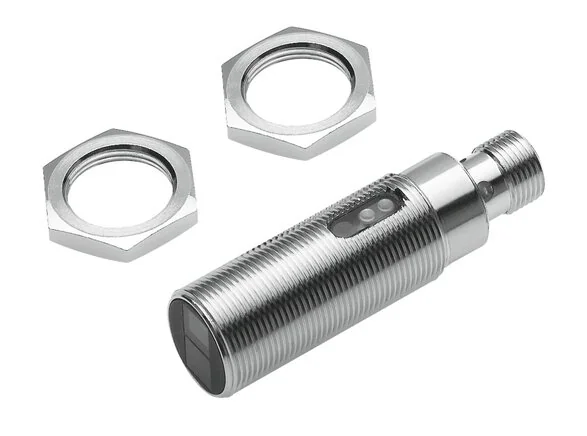

Festo - SOEG-RTH-M18-PS-S-2L-537689 - Reflective Light Scanner

SKU: festo-soeg-rth-m18-ps-s-2l-537689

Browse all parts
Festo - SOEG-RTH-M18-PS-S-2L-537689 - Reflective Light Scanner

€160.93€137.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€160.93

Brand
Festo
Size
M18x1
Design
round
Light Type
red
Permission
c UL us - Listed (OL)
Range (mm)
10 to 120
Torque (Nm)
20
Control Output
PNP
Fastening Type
With locking nut
Residual Ripple
20%
Setting Options
Poti
Housing Material
chrome-plated
Voltage Drop (V)
2
Measured Parameter
Position
Measurement Process
Diffuse-reflective photoelectric sensor with hidden background
Protection Category
IP67
Complies To Standard
EN 60947-5-2
Locking Nut Material
chrome-plated
Electrical Connection
Plug
Measurement Principle
Optoelectronic
Empty Run Current (mA)
25
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
200
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 55
Functional Reserve Display
LED green
Switching Element Function
Bright switching
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Max. Switching Frequency (Hz)
500
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range DC (V)
10 to 36
Settings Range Lower Limit (mm)
10
Settings Range Upper Limit (mm)
120
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Ambient Temperature For Moving Cable Placements (°C)
-5 to 55
EAN
4052568174002
Manufacturer
Festo
