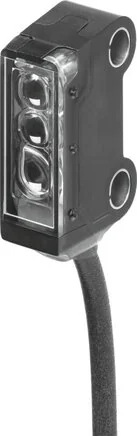

Festo - SOOD-BS-L-PN-50-8075659 - Reflective Light Scanner

SKU: festo-sood-bs-l-pn-50-8075659

Browse all parts
Festo - SOOD-BS-L-PN-50-8075659 - Reflective Light Scanner

€221.82€189.59 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€221.82

Brand
Festo
Design
Block structure
Light Type
red
Permission
c UL us - Recognized (OL)
Range (mm)
7 to 50
Torque (Nm)
0,5
Material Note
RoHs compliant
Control Output
Gegentakt
Fastening Type
With throughway bores
Hysteresis (mm)
1
Line Properties
Standard
Max. Light Spot
1,5 mm bei Tastweite 50 mm
Residual Ripple
10%
Detection Method
Reflexionslichttaster mit HGA
Housing Material
TPE-U(PU)
Voltage Drop (V)
0 to 1.5
Cable Length (mm)
0,15
Certification Body
UL E232949
Reference Material
Standardweiß 90%, 100x100 mm
Protection Category
IP67
Complies To Standard
EN 60947-5-2
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Optoelectronic
Empty Run Current (mA)
10
Insulation Voltage (V)
500
LABS (PWIS) Conformity
VDMA24364-Zone III
Laser Protection Class
1
Plug Contacts Material
brass, Gold plated
Degree Of Contamination
3
Max. Output Current (mA)
50
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-20 to 60
Switching Element Function
NPN dunkelschaltend
Switching Status Indicator
LED yellow
Max. Black-white Difference
13
Operation-readiness Display
LED green
Reverse Polarity Protection
for all electrical connections
Surge Voltage Strength (kV)
1
Minimum Object Diameter (mm)
1,5
Max. Switching Frequency (Hz)
2000
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range DC (V)
10 to 30
Electrical Connection 1, Fastening Type
Screw lock with SW9
Electrical Connection 1, Connection Type
Cable with plug
Electrical Connection 1, Connection Pattern
991155
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
EAN
4052568446314
Manufacturer
Festo
