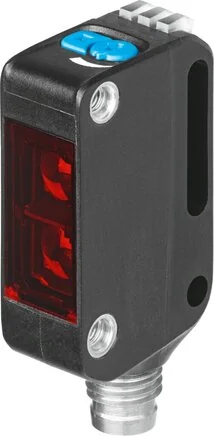

Festo - SOOE-BS-L-PNLK-T-8075670 - Reflective Light Scanner

SKU: festo-sooe-bs-l-pnlk-t-8075670

Festo - SOOE-BS-L-PNLK-T-8075670 - Reflective Light Scanner

€243.76€208.34 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€243.76

Brand
Festo
Design
Block structure
Report
IO-Link
Light Type
red
Permission
c UL us - Listed (OL)
Range (mm)
7 to 300
Torque (Nm)
0,8
Material Note
RoHs compliant
Control Output
Gegentakt
Fastening Type
With Throughway bore for screws M3
Timer Function
über IO-Link
Hysteresis (mm)
18
Max. Light Spot
1 mm bei Tastweite 200 mm
Residual Ripple
10%
Setting Options
Teach-in
Detection Method
Reflexionslichttaster mit HGA
Housing Material
PMMA
IO-Link, Profile
Smart sensor profile
Voltage Drop (V)
0 to 1.5
Certification Body
UL E232949
Reference Material
Standardweiß 90%, 100x100 mm
IO-Link, Port Class
A
Protection Category
IP69K
Complies To Standard
EN 60947-5-2
Installation Position
arbitrary
Measurement Principle
Optoelectronic
Empty Run Current (mA)
25
Insulation Voltage (V)
500
LABS (PWIS) Conformity
VDMA24364-Zone III
Laser Protection Class
1
Plug Contacts Material
brass, Gold plated
Degree Of Contamination
3
Max. Output Current (mA)
100
Max. Switching Frequency
1650
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-40 to 60
IO-Link, Function Classes
Schalt Signal Kanal (SSC)
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Switching Element Function
NPN dunkelschaltend
Switching Status Indicator
LED yellow
IO-Link, Communication Mode
COM2 (38.4 kBaud)
IO-Link, Data Memory Needed
2000
Max. Black-white Difference
45
Operation-readiness Display
LED green
Reverse Polarity Protection
for all electrical connections
Surge Voltage Strength (kV)
1
Minimum Object Diameter (mm)
2
Corrosion Resistance Class KBK
1 - low corrosion stress
IO-Link, Process Data Width IN
1 bit
Operating Voltage Range DC (V)
10 to 30
IO-Link, Process Data Width OUT
2 bit
Settings Range Lower Limit (mm)
25
Settings Range Upper Limit (mm)
300
IO-Link, Minimum Cycle Time (ms)
2,3
IO-Link, Process Data Contents IN
1 bit SSC (Switching Signal)
IO-Link, Process Data Contents OUT
1 bit (Hold)
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
Plug
Electrical Connection 1, Connection Pattern
991155
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
EAN
4052568446420
Manufacturer
Festo
