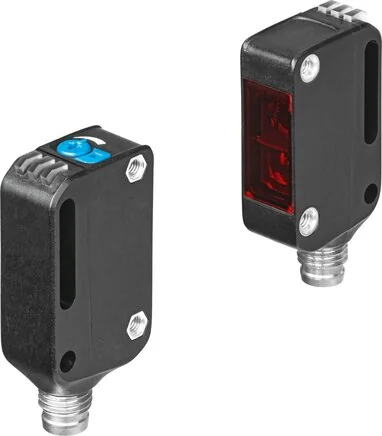

Festo - SOOE-TB-L-PNLK-T-8075671 - Light Barrier

SKU: festo-sooe-tb-l-pnlk-t-8075671

Festo - SOOE-TB-L-PNLK-T-8075671 - Light Barrier

€217.83€186.18 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€217.83

Brand
Festo
Design
Block structure
Report
IO-Link
Light Type
red
Permission
c UL us - Listed (OL)
Range (mm)
0 to 20000
Torque (Nm)
0,8
Material Note
RoHs compliant
Control Output
Gegentakt
Fastening Type
With Throughway bore for screws M3
Timer Function
über IO-Link
Max. Light Spot
50 mm bei 20000 mm
Residual Ripple
10%
Setting Options
Teach-in
Detection Method
Empfänger
Housing Material
PMMA
Voltage Drop (V)
0 to 1.5
Certification Body
UL E232949
IO-Link, Port Class
A
Protection Category
IP69K
Complies To Standard
EN 60947-5-2
Installation Position
arbitrary
Measurement Principle
Optoelectronic
Empty Run Current (mA)
14
Insulation Voltage (V)
500
LABS (PWIS) Conformity
VDMA24364-Zone III
Laser Protection Class
1
Plug Contacts Material
brass, Gold plated
Degree Of Contamination
3
Max. Output Current (mA)
100
Max. Switching Frequency
1250
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-40 to 60
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Functional Reserve Display
LED gelb blinkend
Switching Element Function
NPN hellschaltend
Switching Status Indicator
LED yellow
IO-Link, Communication Mode
COM2 (38.4 kBaud)
IO-Link, Data Memory Needed
2000
Operation-readiness Display
LED green
Reverse Polarity Protection
for all electrical connections
Surge Voltage Strength (kV)
1
Corrosion Resistance Class KBK
1 - low corrosion stress
IO-Link, Process Data Width IN
2 bit (Receiver)
Operating Voltage Range DC (V)
10 to 30
IO-Link, Process Data Width OUT
2 bit (Receiver)
IO-Link, Minimum Cycle Time (ms)
2,3
IO-Link, Process Data Contents IN
1 bit SSC (Switching Signal)
IO-Link, Process Data Contents OUT
1 bit (Hold)
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
Plug
Electrical Connection 1, Connection Pattern
991155
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
EAN
4052568446437
Manufacturer
Festo
