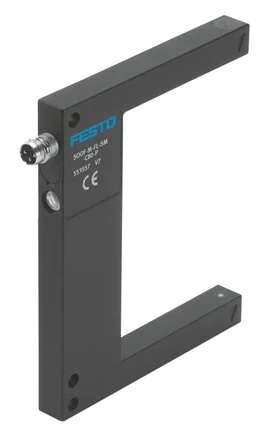

Festo - SOOF-M-FL-SM-C80-P-553557 - Fork Light Barrier

SKU: festo-soof-m-fl-sm-c80-p-553557

Festo - SOOF-M-FL-SM-C80-P-553557 - Fork Light Barrier

€300.61€256.93 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€300.61

Brand
Festo
Size
Fork 80x55 mm
Report
IO-Link
Light Type
red
Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Control Output
PNP
Timer Function
über IO-Link
Fork Width (mm)
80
Hysteresis (mm)
0,1
Residual Ripple
± 5 %
Setting Options
Poti
Housing Material
Zink-Druckguss, beschichtet
IO-Link, Profile
Smart sensor profile
Measured Parameter
Position
Repeatability (mm)
0,02
IO-Link, Port Class
A
Measurement Process
Forked light curtain
Protection Category
IP67
Electrical Connection
Plug
Measurement Principle
Optoelectronic
Empty Run Current (mA)
30
Insulation Voltage (V)
500
LABS (PWIS) Conformity
VDMA24364-Zone III
Degree Of Contamination
3
Max. Output Current (mA)
100
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 60
IO-Link, Function Classes
Teach channel
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Switching Element Function
Switchable
Switching Status Indicator
LED yellow
IO-Link, Communication Mode
COM2 (38.4 kBaud)
IO-Link, Data Memory Needed
73
Reverse Polarity Protection
for all electrical connections
Surge Voltage Strength (kV)
0,8
Minimum Object Diameter (mm)
0,3
IO-Link, Service Data Unit IN
8 bit Teach-In Quality
Max. Switching Frequency (Hz)
5000
Corrosion Resistance Class KBK
0 - No corrosion stressing
IO-Link, Process Data Width IN
2 Bytes
Operating Voltage Range DC (V)
10 to 30
IO-Link, Process Data Width OUT
0 Bytes
IO-Link, Minimum Cycle Time (ms)
2,3
IO-Link, Process Data Contents IN
12 bit PDV (Signal Level)
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
EAN
4052568197568
Manufacturer
Festo
