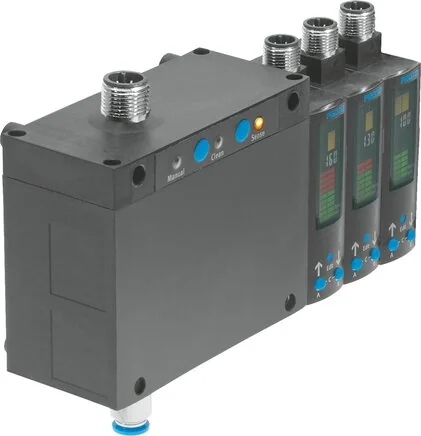

Festo - SOPA-CM3H-R1-WQ6-2P-M12-552140 - Air Gap Sensor

SKU: festo-sopa-cm3h-r1-wq6-2p-m12-552140

Festo - SOPA-CM3H-R1-WQ6-2P-M12-552140 - Air Gap Sensor

€1,646.81€1,407.53 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,646.81

Brand
Festo
KC-mark
KC-EMV
Permission
c UL us - Recognized (OL)
Display Type
Illuminating LCD Multiple
Material Note
RoHs compliant
Control Output
2xPNP
Fastening Type
With Wall / flat holder
Recording Range
20 to 200
Setting Options
Via display and buttons
Switch Function
Threshold value with variable hysteresis
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Detected Variable
Abstand
Tamper-proof Fuse
Electronic locking
Feed Pressure (bar)
0.8 to 1.6
Protection Category
IP65
Pneumatic Connection
QS-6
Max. Power Input (mA)
850
Measurement Principle
pneumatic
LABS (PWIS) Conformity
VDMA24364-C1-L
Max. Output Current (mA)
100
Operating Pressure (bar)
4 to 7
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
Switching Element Function
Opener/closer switchable
Reverse Polarity Protection
for all electrical connections
Repetition Accuracy In ± µm
2,5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
22.8 to 26.4
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
Electrical Connection 1, Connection Pattern
991172
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
5
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
EAN
4052568193768
Manufacturer
Festo
