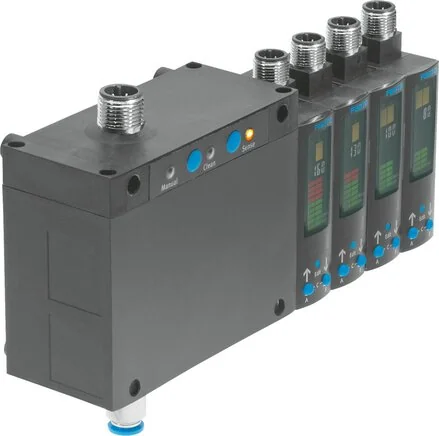

Festo - SOPA-CM4H-R1-HQ6-PNLK-VB-M12-8093824 - Air Gap Sensor

SKU: festo-sopa-cm4h-r1-hq6-pnlk-vb-m12-8093824

Festo - SOPA-CM4H-R1-HQ6-PNLK-VB-M12-8093824 - Air Gap Sensor

€2,014.44€1,721.74 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,014.44

Brand
Festo
Report
IO-Link
KC-mark
KC-EMV
Permission
c UL us - Recognized (OL)
Display Type
Illuminating LCD Multiple
Material Note
RoHs compliant
Control Output
PNP/NPN switchable
Fastening Type
With Slot rail
Rise Time (ms)
22
Analogue Output
0 - 10 V
Recording Range
20 to 200
Setting Options
Via display and buttons
Switch Function
Threshold value with variable hysteresis
Housing Material
PA reinforced
IO-Link, Profile
Smart sensor profile
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Detected Variable
Abstand
Tamper-proof Fuse
Electronic locking
Feed Pressure (bar)
0.8 to 1.6
IO-Link, Port Class
A
Protection Category
IP65
Pneumatic Connection
QS-6
Max. Power Input (mA)
700
Measurement Principle
pneumatic
LABS (PWIS) Conformity
VDMA24364-C1-L
Max. Output Current (mA)
100
Operating Pressure (bar)
4 to 7
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
IO-Link, Function Classes
Schalt Signal Kanal (SSC)
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Switching Element Function
Opener/closer switchable
IO-Link, Communication Mode
COM2 (38.4 kBaud)
IO-Link, Data Memory Needed
500
Reverse Polarity Protection
for all electrical connections
IO-Link, Service Data Unit IN
14 bit Speisedruck
Repetition Accuracy In ± µm
2,5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
IO-Link, Process Data Width IN
2 Bytes
Operating Voltage Range DC (V)
22.8 to 26.4
IO-Link, Process Data Width OUT
0 Bytes
IO-Link, Minimum Cycle Time (ms)
3
IO-Link, Process Data Contents IN
2 bit SSC (Abstandsüberwachung)
Min. Load Resistance Voltage Output
20
End Value Of Distance Characteristic
300
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
Starting Value Of Distance Characteristic
0
Electrical Connection 1, Connection Pattern
991172
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
5
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
EAN
4052568462307
Manufacturer
Festo
