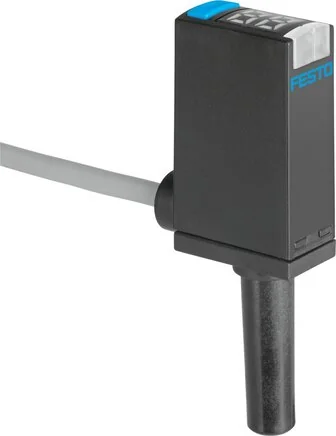

Festo - SPAE-V1R-S4-PNLK-2.5K-8001440 - Pressure Sensor

SKU: festo-spae-v1r-s4-pnlk-2-5k-8001440

Festo - SPAE-V1R-S4-PNLK-2.5K-8001440 - Pressure Sensor

€123.48€105.54 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€123.48

Brand
Festo
Report
IO-Link
Permission
c UL us - Recognized (OL)
Display Type
2-stellig
Material Note
RoHs compliant
Control Output
PNP/NPN switchable
Fastening Type
Pluggable
Gasket Material
FPM
Setting Options
Via display and buttons
Switch Function
Freely programmable
Cable Length (m)
2,5
Housing Material
PA reinforced
IO-Link, Profile
Smart sensor profile
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Tamper-proof Fuse
PIN code
Certification Body
UL E322346
Measured Parameter
Relative pressure
Accuracy In ± % FS
1,5
IO-Link, Port Class
A
Measurement Process
Piezoresistive pressure sensor with display
Presentable Unit(s)
%FS
Protection Category
IP40
Switch On Time (ms)
1
Pneumatic Connection
Plug sleeve QS-4
Resolution ADC (Bit)
10
Switch Off Time (ms)
1
Electrical Connection
Open end
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Display Range End Value
99
Overload Pressure (MPa)
0,5
Repeatability In ± %FS
0,3
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
IO-Link, Function Classes
Teach channel
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Switching Element Function
Switchable
Switching Status Indicator
LED yellow
IO-Link, Communication Mode
COM2 (38.4 kBaud)
IO-Link, Data Memory Needed
500
Reverse Polarity Protection
for all electrical connections
Display Range Starting Value
0
Corrosion Resistance Class KBK
2 - moderate corrosion stress
IO-Link, Process Data Width IN
2 Bytes
Operating Voltage Range DC (V)
18 to 30
Settings Range Threshold Value
1 to 98
IO-Link, Process Data Width OUT
0 Bytes
IO-Link, Minimum Cycle Time (ms)
3
IO-Link, Process Data Contents IN
2 bit BDC (Drucküberwachung)
Temperature Coefficient In ± %FS/K
0,05
Note On Operating And Control Medium
Oiled operation possible
Pressure Measurement Range End Value (MPa)
-0,1
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Pressure Measurement Range Starting Value (MPa)
0
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568277178
Manufacturer
Festo
