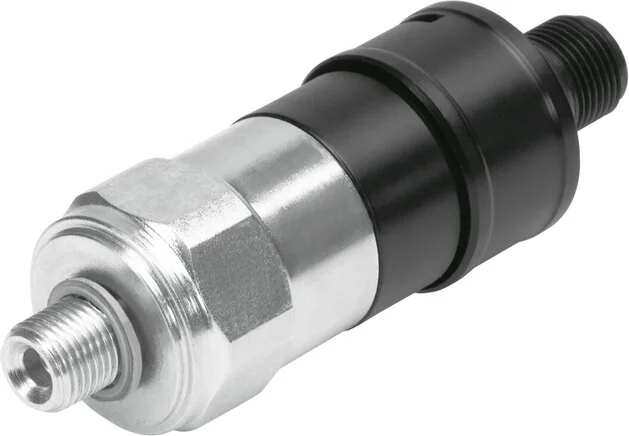

Festo - SPBA-P2R-G18-W-M12-0,25X-8000033 - Pressure Switch

SKU: festo-spba-p2r-g18-w-m12-0-25x-8000033

Browse all parts
Festo - SPBA-P2R-G18-W-M12-0,25X-8000033 - Pressure Switch

€207.23€177.12 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€207.23

Brand
Festo
Material Note
RoHs compliant
Control Output
Contact
Fastening Type
Screwable
Setting Options
Fixed setting
Switch Function
Threshold value with fixed hysteresis
Housing Material
Steel
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Measured Parameter
Relative pressure
Measurement Process
Pneumatic electric pressure converter
Protection Category
IP65
Minimum Load Current
2 mA at 24 V
Pneumatic Connection
G1/8
Electrical Connection
runde Bauform
Switch On Point (bar)
0,25
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Operating Pressure (MPa)
-0,1 to 1
Short Circuit Resistance
no
Switch-on Point Max (bar)
0,4
Switch-off Point Min (bar)
0,05
Switching Element Function
changeover contact
Max. Output Current DC (mA)
1000
Reverse Polarity Protection
no
Corrosion Resistance Class KBK
0 - No corrosion stressing
Operating Voltage Range DC (V)
19,2 to 30
Electrical Connection: Material
POM
Note On Operating And Control Medium
Oiled operation possible
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
Electrical Connection 1, Connection Pattern
995386
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
EAN
4052568255626
Manufacturer
Festo
