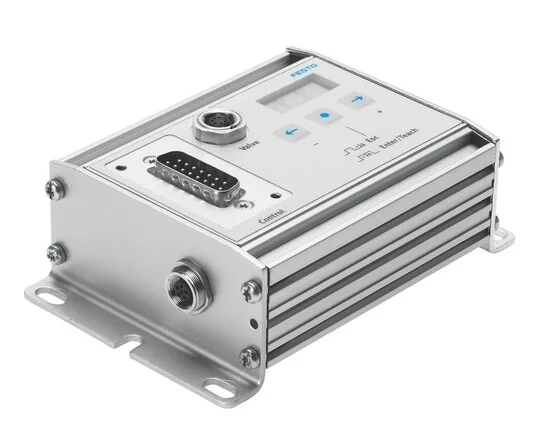

Festo - SPC11-MTS-AIF-2-548129 - End Position Regulator

SKU: festo-spc11-mts-aif-2-548129

Browse all parts
Festo - SPC11-MTS-AIF-2-548129 - End Position Regulator

€767.05€655.60 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€767.05

Brand
Festo
Display
Seven segment display
Permission
RCM mark
Data Backup
Flash memory
Output Fuses
über Summe aller Ausgänge
Design Inputs
keine galvanische Trennung
Control Signal
Ausgang Position 1/2/3/4
Design Outputs
keine galvanische Trennung
Cable Length (m)
30
Operating Element
Folientastatur
Relative Humidity
Not condensing
Protection Category
acc. to IEC 60529
LABS (PWIS) Conformity
VDMA24364-B2-L
Quantity Digital Inputs
8
Quantity Digital Outputs
5
Ambient Temperature (°C)
50
Debounce Time Inputs (ms)
20
Power Consumption Input (mA)
4
Permitted Voltage Oscillations
± 25 %
Nominal Operating Voltage DC (V)
24
Current Carrying Capacity Per Output (A)
100
Electrical Connection: Proportional Valve
7 pin
Oscillation Strength To DIN/IEC 68 Part 2-6
Tested to severity class 1
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection: Path Measurement System
runde Bauform
Continuous Impact Strength DIN&EC 68 Parts 2-82
Tested to severity class 2
Max. Current Consumption With Proportional Valve (A)
1,1
Max. Current Consumption Without Proportional Valve (mA)
70
Electrical Connection Operating Voltage, Inputs And Outputs
Plug
EAN
4052568190101
Manufacturer
Festo
