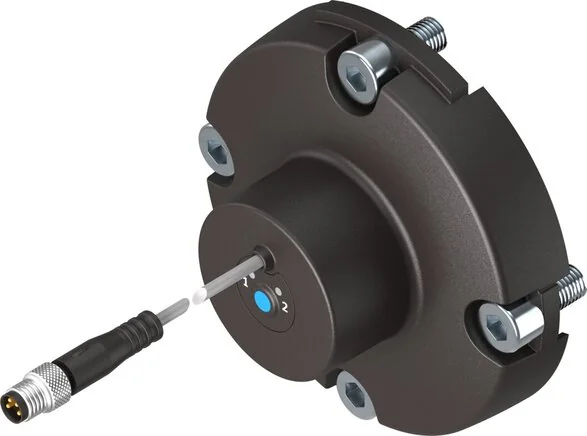

Festo - SRBS-Q12-40-E270-EP-1-S-M8-2393550 - Position Sensor

SKU: festo-srbs-q12-40-e270-ep-1-s-m8-2393550

Browse all parts
Festo - SRBS-Q12-40-E270-EP-1-S-M8-2393550 - Position Sensor

€175.20€149.74 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€175.20

Brand
Festo
Design
round
Permission
c UL us - Listed (OL)
Foil Material
Polyester
Material Note
halogenfrei
Control Output
2 x PNP or 2 x NPN switchable
Fastening Type
Permanently screwed
Housing Colour
black
Line Properties
energiekettentauglich/ robotertauglich
Residual Ripple
10%
Setting Options
Button
Cable Length (m)
0,3
Housing Material
Polyester
Protection Class
III
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Special Features
Oil resistant
Voltage Drop (V)
1
Based On Standard
EN 60947-5-2
Measured Parameter
Angle of rotation
Overload Resistant
yes
Cable Diameter (mm)
2,9
Cable Shield Colour
Grey
Protection Category
IP68
Switch On Time (ms)
4
Oscillation Strength
Transporteinsatzprüfung mit Schärfegrad 3 nach FN 942017-4 und EN 60068-2-6
Recording Range (°)
270
Switch Off Time (ms)
4
Test Conditions Line
Energiekette: > 5 Millionen Zyklen, Biegeradius 28 mm
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Hall magnetic
Residual Current (mA)
0,05
Empty Run Current (mA)
20
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Copper alloy gold plated
Max. Output Current (mA)
50
Short Circuit Resistance
yes
Ambient Temperature (°C)
-20 to 70
Bearing Temperature (°C)
-30 to 70
Switching Element Function
Opener/closer switchable
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Reverse Polarity Protection
for all electrical connections
Sampling Interval Type (ms)
3
Reproducibility Switch Point
<= 1 °
Max. Switching Frequency (Hz)
125
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Switching Capacity DC (W)
1,5
Operating Voltage Range DC (V)
10 to 30
Rated Operating Voltage DC (V)
24
Electrical Connection 1, Fastening Type
drehbar
Electrical Connection 1, Connection Type
Cable with plug
Electrical Connection 1, Connection Pattern
991171
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar/nicht drehbar
Ambient Temperature For Moving Cable Placements (°C)
-20 to 70
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568264932
Manufacturer
Festo
