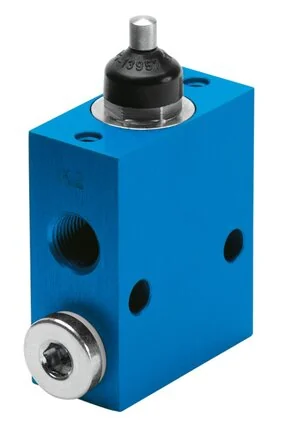

Festo - V/O-3-1/8-4938 - Plunger Valve

SKU: festo-v-o-3-1-8-4938

Browse all parts
Festo - V/O-3-1/8-4938 - Plunger Valve

€143.01€122.23 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€143.01

Brand
Festo
Control Type
Direct
Actuation Type
Mechanical
Fastening Type
With throughway bores
Seals Material
NBR
Valve Function
3/2 open/closed monostable
Housing Material
Anodized aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [-:-:-]
Nominal Width (mm)
3,5
Actuating Force (N)
28,00
Construction Set Up
Piston seat
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Operating Pressure (MPa)
-0.95 to 8
Ambient Temperature (°C)
-10 to 60
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Actuation Force At Basic Setting Closed (N)
37,53
Standard Nominal Flow Rate (Standardised To DIN 1343)
140
EAN
4052568000769
Manufacturer
Festo
