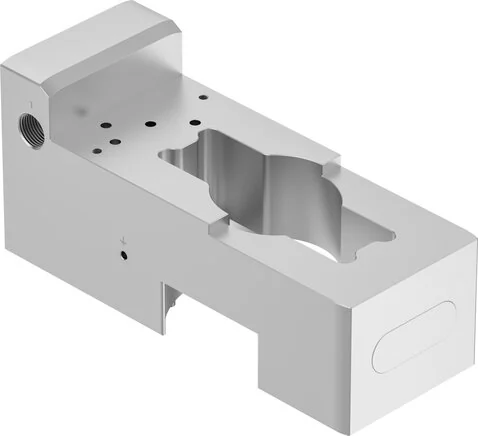

Festo - VABA-C13-100-2-F90-G12-G14-8189575 - Adapter Plate

SKU: festo-vaba-c13-100-2-f90-g12-g14-8189575

Browse all parts
Festo - VABA-C13-100-2-F90-G12-G14-8189575 - Adapter Plate

€822.11€702.66 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€822.11

Brand
Festo
Size
2300
Material Note
RoHs compliant
Cover Material
Aluminium-Knetlegierung, gleiteloxiert (20 µm)
Fastening Type
With Accessories
Seals Material
NBR
Screws Material
High-alloyed stainless steels
Housing Material
Aluminium-Knetlegierung, gleiteloxiert (20 µm)
Operating Medium
Inerte Gase
Construction Set Up
Adapter für Drehantrieb
Pneumatic Connection
Anschlussplattendesign, Airing
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/2
Pneumatic Connection 4
G1/4
Medium Temperature (°C)
-40 to 80
Operating Pressure (MPa)
0 to 0,9
Ambient Temperature (°C)
-40 to 80
Corrosion Resistance Class KBK
3 - severe corrosion stress
Note On Operating And Control Medium
Oiled operation not possible
Valve Connection Corresponds To Standard
VDI/VDE 3845-1
EAN
4052568635084
Manufacturer
Festo
