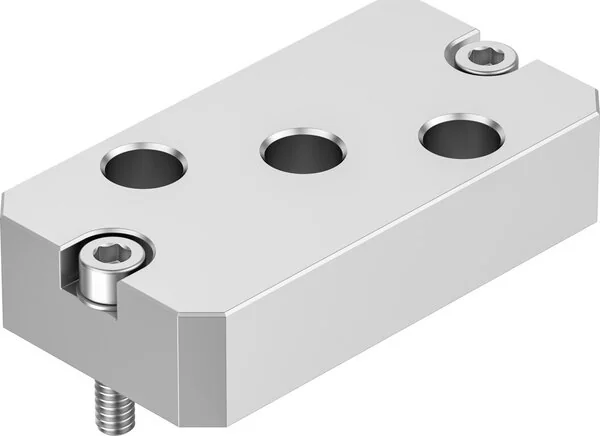

Festo - VABA-C13-G14-8194539 - Adapter Plate

SKU: festo-vaba-c13-g14-8194539

Browse all parts
Festo - VABA-C13-G14-8194539 - Adapter Plate

€98.27€83.99 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€98.27

Brand
Festo
Material Note
RoHs compliant
Cover Material
Aluminium-Knetlegierung, gleiteloxiert (20 µm)
Fastening Type
With Accessories
Seals Material
NBR
Screws Material
High-alloyed stainless steels
Housing Material
Aluminium-Knetlegierung, gleiteloxiert (20 µm)
Operating Medium
Inerte Gase
Construction Set Up
Adapter für Fernanwendung
Pneumatic Connection
Anschlussplattendesign, Airing
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 4
G1/4
Medium Temperature (°C)
-40 to 80
Operating Pressure (MPa)
0 to 0.8
Ambient Temperature (°C)
-40 to 80
Corrosion Resistance Class KBK
3 - severe corrosion stress
Note On Operating And Control Medium
Oiled operation not possible
EAN
4052568635220
Manufacturer
Festo
