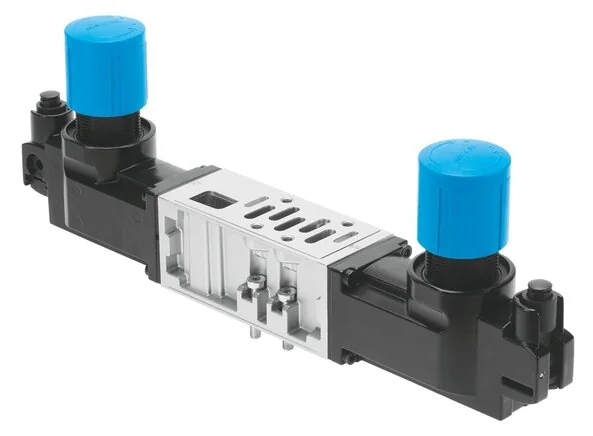

Festo - VABF-S1-1-R4C2-C-10-546824 - Regulator Plate

SKU: festo-vabf-s1-1-r4c2-c-10-546824

Browse all parts
Festo - VABF-S1-1-R4C2-C-10-546824 - Regulator Plate

€410.81€351.12 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€410.81

Brand
Festo
Material Note
RoHs compliant
Build Width (mm)
42
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 5599-1
Controller Function
With relieving
Protection Category
NEMA 4
Installation Position
arbitrary
Control Panel Material
PA
Input Pressure 1 (bar)
0.5 to 10
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Height Linking
pressure regulator for 2 und 4
Selection Pressure Gauge
Possible
Ambient Temperature (°C)
-5 to 50
Pressure Gauge Connection
With Holding clamp
Controller Housing Material
Aluminium die casting
Fastening Type Height Linking
auf Einzelanschlussplatte
Corrosion Resistance Class KBK
0 - No corrosion stressing
Pressure Regulation Range (MPa)
0,1 to 1
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568185442
Manufacturer
Festo
