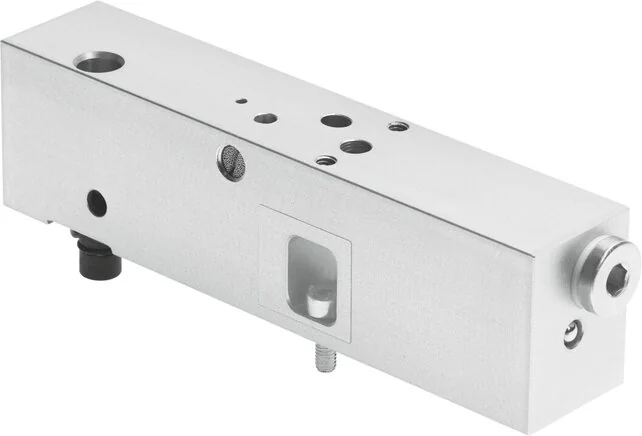

Festo - VABF-S4-1-S-570851 - Intermediate Plate

SKU: festo-vabf-s4-1-s-570851

Browse all parts
Festo - VABF-S4-1-S-570851 - Intermediate Plate

€214.06€182.96 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€214.06

Brand
Festo
Material Note
RoHs compliant
Plate Material
Aluminium wrought alloy
Build Width (mm)
26
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 15407-2
Protection Category
NEMA 4
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 26 mm to ISO 15407-2
Pneumatic Connection 4
Connection plate Size 26 mm to ISO 15407-2
Pneumatic Connection 5
Connection plate Size 26 mm to ISO 15407-2
Operating Pressure (MPa)
0,3 to 1
Ambient Temperature (°C)
-5 to 50
Control Air 14 Connection
Connection plate Size 26 mm to ISO 15407-2
Fastening Type Height Linking
auf Einzelanschlussplatte
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
EAN
4052568217471
Manufacturer
Festo
