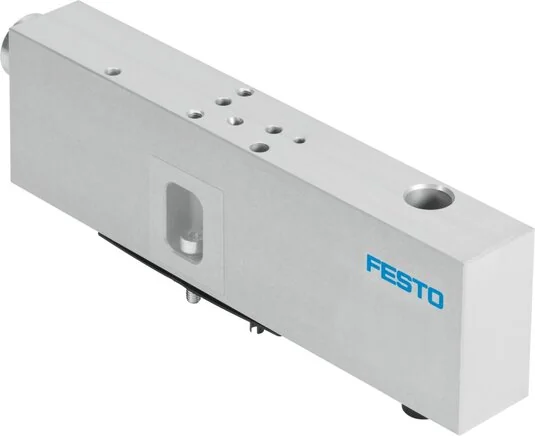

Festo - VABF-S4-2-S-573200 - Intermediate Plate

SKU: festo-vabf-s4-2-s-573200

Browse all parts
Festo - VABF-S4-2-S-573200 - Intermediate Plate

€203.25€173.72 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€203.25

Brand
Festo
Material Note
RoHs compliant
Plate Material
Aluminium wrought alloy
Build Width (mm)
18
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 15407-2
Protection Category
NEMA 4
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 18 mm to ISO 15407-2
Pneumatic Connection 4
Connection plate Size 18 mm to ISO 15407-2
Pneumatic Connection 5
Connection plate Size 18 mm to ISO 15407-2
Operating Pressure (MPa)
0,3 to 1
Ambient Temperature (°C)
-5 to 50
Control Air 14 Connection
Connection plate Size 18 mm to ISO 15407-2
Fastening Type Height Linking
auf Einzelanschlussplatte
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
EAN
4052568219758
Manufacturer
Festo
