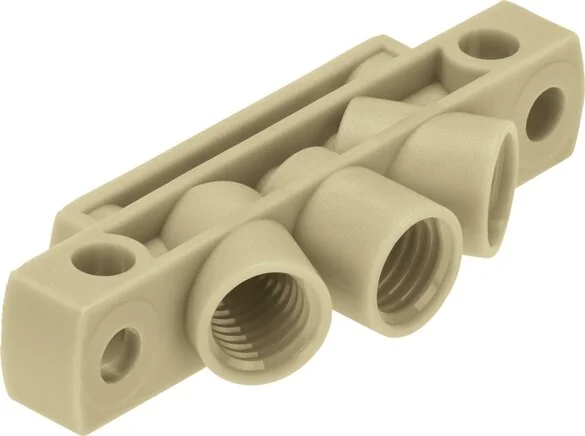

Festo - VABS-K1-7B-12-M5-P-8047064 - Connection Plate

SKU: festo-vabs-k1-7b-12-m5-p-8047064

Browse all parts
Festo - VABS-K1-7B-12-M5-P-8047064 - Connection Plate

€32.27€27.58 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€32.27

Brand
Festo
Material Note
RoHs compliant
Flow Direction
Reversible
Valve Size (mm)
7
Fluid Connection
female thread M5
Operating Medium
Gasförmige Medien
Food Compatibility
See expanded material information
Nominal Width (mm)
1,2
Construction Set Up
Anschlussrichtung unten
Fastening Type Valve
with female thread
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Medium Temperature (°C)
0 to 50
Threaded Sleeve Material
High-alloyed stainless steels
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 70
Connection Plate Material
PEEK
Corrosion Resistance Class KBK
0 - No corrosion stressing
Fastening Type Connection Plate
With throughway bores
Note On Operating And Control Medium
Pay attention to the resistance of the materials in contact with media
Max. Tightening Torque Valve Fastening (Nm)
0,15
Max. Tightening Torque Screw Connection (Nm)
0,6
EAN
4052568459499
Manufacturer
Festo
