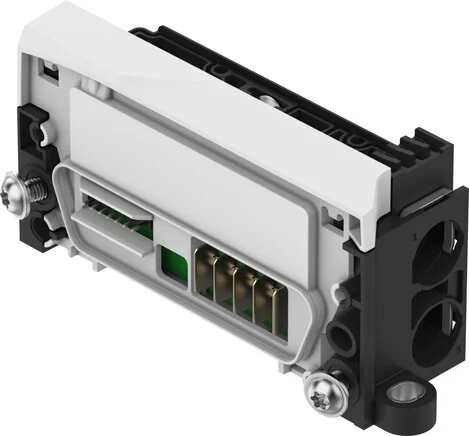

Nut Material
High-alloyed stainless steels
Material Note
RoHs compliant
Cover Material
PBT reinforced
Fastening Type
mit Durchgangsbohrung für Schraube M5
Clamps Material
High-alloyed stainless steels
Sleeve Material
High-alloyed stainless steels
Module Parameter
Verhalten im Fehlerzustand
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Diagnosis Via LED
Diagnose pro Modul
Relative Humidity
5 - 95 %
Connection Position
On the side
Electrical Controls
AP-Schnittstelle
Dimensions W x L x H
35,2 mm x 117,2 mm x 56,1 mm
Fuse (Short Circuit)
Internal electronic fuse Per channel
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Max. Setup Height (m)
3.500
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
für Cartridge 15 mm
Pneumatic Connection 5
für Cartridge 15 mm
Valve Island Structure
Valve sizes mixable
Nominal Altitude Of Use
<= 2000 m NHN
Voltage Supply, Function
Elektronik/Sensoren und Last kommend
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Connection Plate Material
PA reinforced
Max. Number Of Valve Coils
120
Reverse Polarity Protection
yes
Inductive Protection Circuit
Integrated
Power Blackout Bridging (ms)
10
Power Consumption At 24 V DC
0,65
Power Transmission, Function
Elektronik/Sensoren und Last gehend
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Fastening Type Connection Plate
With throughway bores
Communication Interface, Protocol
AP
Diagnostics Per Internal Communication
Unterspannung Logikversorgung PS
Permissible Voltage Fluctuation Of Load
± 10 %
Nominal Operating Voltage DC Of Load (V)
24
Max. Tightening Torque Wall Assembly (Nm)
6
Protect Against Direct And Indirect Contact
SELV
Intrinsic Power Input Operating Voltage Load
typisch 13 mA
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Undervoltage Load/valves (Diagnostic Message) (V)
21,1
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Intrinsic Power Input Operating Voltage Electronics/sensors
typisch 27 mA
Electrical Isolation Of Outputs Between Channel - Internal Communication
yes
Potential Separation Between The Supply Voltages Electronics/sensor Technology And Load/valves
yes
