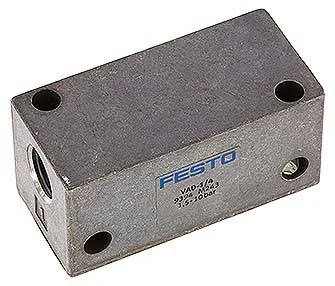

Festo - VAD-1/4-9394 - Vacuum Suction Nozzle

SKU: festo-vad-1-4-9394

Browse all parts
Festo - VAD-1/4-9394 - Vacuum Suction Nozzle

€137.62€117.62 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€137.62

Brand
Festo
Max. Vacuum
80
Fastening Type
With throughway bores
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Vacuum Connection
G1/4
Construction Set Up
T-shape
Installation Position
arbitrary
Ejector Characteristic
High vacuum
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 3
G1/4
Medium Temperature (°C)
-20 to 80
Operating Pressure (MPa)
0,15 to 1
Ambient Temperature (°C)
-20 to 80
Nominal Width Laval Nozzle (mm)
1
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568001858
Manufacturer
Festo
