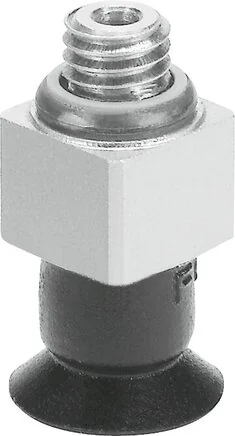

Festo - VAS-10-M5-NBR-173440 - Vacuum Sucker

SKU: festo-vas-10-m5-nbr-173440

Browse all parts
Festo - VAS-10-M5-NBR-173440 - Vacuum Sucker

€12.53€10.71 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€12.53

Brand
Festo
Colour
black
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round flat
Vacuum Connection
M5
Nominal Width (mm)
2
Suction Cup Volume
0,12
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
NBR
LABS (PWIS) Conformity
VDMA24364-A1-L
Operating Pressure (MPa)
-0,095 to 0
Ambient Temperature (°C)
-20 to 80
Suction Cup Diameter (mm)
10
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Effective Suction Diameter (mm)
9
Height Balance Suction Cup (mm)
1,1
Nominal Operating Pressure (MPa)
-0,07
Holding Force For Nominal Operating Pressure (N)
4,50
EAN
4052568037451
Manufacturer
Festo
