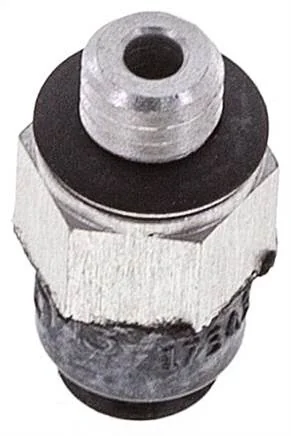

Festo - VAS-5-M5-NBR-173439 - Vacuum Sucker

SKU: festo-vas-5-m5-nbr-173439

Browse all parts
Festo - VAS-5-M5-NBR-173439 - Vacuum Sucker

€16.25€13.89 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€16.25

Brand
Festo
Colour
black
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
55 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round flat
Vacuum Connection
M5
Nominal Width (mm)
1,5
Suction Cup Volume
0,03
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
NBR
LABS (PWIS) Conformity
VDMA24364-A1-L
Operating Pressure (MPa)
-0,095 to 0
Ambient Temperature (°C)
-20 to 80
Suction Cup Diameter (mm)
5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Effective Suction Diameter (mm)
4
Height Balance Suction Cup (mm)
0,5
Nominal Operating Pressure (MPa)
-0,07
Holding Force For Nominal Operating Pressure (N)
0,90
EAN
4052568037444
Manufacturer
Festo
