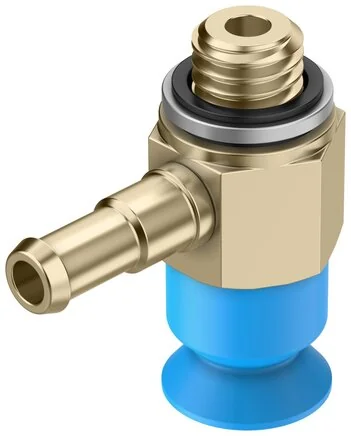

Festo - VAS-8-M5-S-PUR-B-8025969 - Vacuum Sucker

SKU: festo-vas-8-m5-s-pur-b-8025969

Browse all parts
Festo - VAS-8-M5-S-PUR-B-8025969 - Vacuum Sucker

€18.72€16.00 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€18.72

Brand
Festo
Colour
blue
Material Note
RoHs compliant
Stud Material
Brass
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round flat
Vacuum Connection
M5
Nominal Width (mm)
2
Suction Cup Volume
0,095
Connection Position
On the side
Installation Position
arbitrary
Suction Cups Material
TPE-U(PU)
LABS (PWIS) Conformity
VDMA24364-A1-L
Operating Pressure (MPa)
-0,095 to 0
Ambient Temperature (°C)
-20 to 60
Suction Cup Diameter (mm)
8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Effective Suction Diameter (mm)
7,1
Height Balance Suction Cup (mm)
0,9
Nominal Operating Pressure (MPa)
-0,07
Holding Force For Nominal Operating Pressure (N)
2,80
EAN
4052568063085
Manufacturer
Festo
