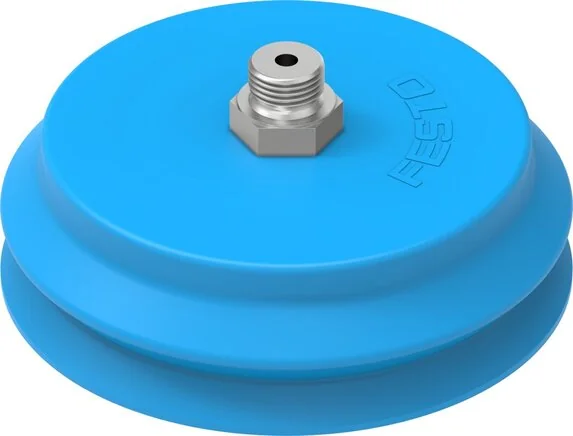

Festo - VASB-100-1/4-PUR-B-1396066 - Vacuum Sucker

SKU: festo-vasb-100-1-4-pur-b-1396066

Browse all parts
Festo - VASB-100-1/4-PUR-B-1396066 - Vacuum Sucker

€51.40€43.93 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€51.40

Brand
Festo
Colour
blue
Material Note
RoHs compliant
Stud Material
Zinc pressure cast
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round folding bellows1.5 times
Vacuum Connection
G1/4
Nominal Width (mm)
4
Suction Cup Volume
128
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
PUR
LABS (PWIS) Conformity
VDMA24364-A1-L
Operating Pressure (MPa)
-0,095 to 0
Ambient Temperature (°C)
-20 to 60
Suction Cup Diameter (mm)
100
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Effective Suction Diameter (mm)
90,5
Height Balance Suction Cup (mm)
15,5
Nominal Operating Pressure (MPa)
-0,07
Holding Force For Nominal Operating Pressure (N)
450,00
EAN
4052568105693
Manufacturer
Festo
