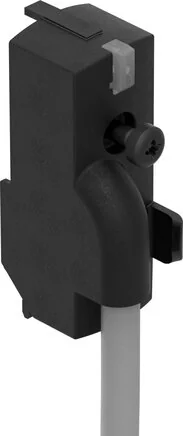

Festo - VAVE-L1-1K6-LR-573945 - Electrical Connection Plate

SKU: festo-vave-l1-1k6-lr-573945

Browse all parts
Festo - VAVE-L1-1K6-LR-573945 - Electrical Connection Plate

€27.45€23.46 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€27.45

Brand
Festo
Wire Ends
Wire end sleeve
Permission
RCM mark
Cable Set Up
2 x 0,25 mm²
Material Note
RoHs compliant
Cover Material
PA
Fastening Type
on solenoid valve with self-cutting screw
Housing Colour
black
Seals Material
EPDM
Line Properties
For static applications
Screws Material
Quenched and tempered steel
Cable Length (m)
0,5
Housing Material
PA
Cable Diameter (mm)
3,4
Protection Category
IP65
Additional Functions
Holding current reduction
Cable Sleeve Material
TPV
Electrical Connection
viereckige Bauform / offenes Ende
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Degree Of Contamination
3
Signal Condition Display
LED
Tolerance Cable Diameter
± 0,1 mm
Ambient Temperature (°C)
-5 to 60
Protection Line Connection
Not available
Max. Tightening Torque (Nm)
0,27
Reverse Polarity Protection
Bipolar
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Min. Cable Bending Radius (mm)
34
Nominal Operating Voltage DC (V)
24
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
EAN
4052568059347
Manufacturer
Festo
