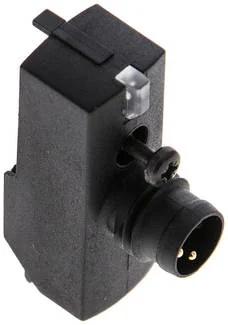

Festo - VAVE-L1-1R8-LR-573920 - Electrical Connection Plate

SKU: festo-vave-l1-1r8-lr-573920

Browse all parts
Festo - VAVE-L1-1R8-LR-573920 - Electrical Connection Plate

€26.43€22.59 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€26.43

Brand
Festo
Permission
RCM mark
Material Note
RoHs compliant
Cover Material
PA
Fastening Type
on solenoid valve with self-cutting screw
Housing Colour
black
Seals Material
EPDM
Screws Material
Quenched and tempered steel
Housing Material
PA
Protection Category
IP65
Additional Functions
Holding current reduction
Electrical Connection
Stecker / Dose
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Degree Of Contamination
3
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 60
Protection Line Connection
Not available
Max. Tightening Torque (Nm)
0,27
Reverse Polarity Protection
Bipolar
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Operating Voltage DC (V)
24
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
EAN
4052568059255
Manufacturer
Festo
