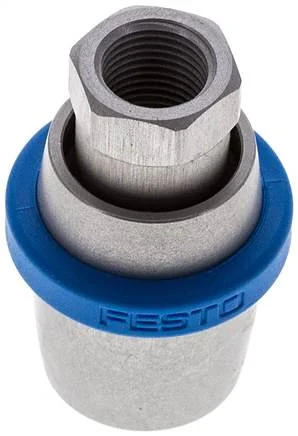

Festo - VBOH-32-G18-1558073 - Hand Slide Valve

SKU: festo-vboh-32-g18-1558073

Browse all parts
Festo - VBOH-32-G18-1558073 - Hand Slide Valve

€49.03€41.91 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€49.03

Brand
Festo
Control Type
Direct
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy, anodised
Actuation Type
Manually
Fastening Type
Screwable
Seals Material
NBR
Valve Function
3/2 bistable
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Nominal Width (mm)
5,7
Actuating Force (N)
17
Construction Set Up
Sleeve pusher
Pitch Dimension (mm)
24
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Medium Temperature (°C)
-10 to 80
Operating Pressure (MPa)
-0,095 to 1,2
Ambient Temperature (°C)
-10 to 80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
777
EAN
4052568107819
Manufacturer
Festo
