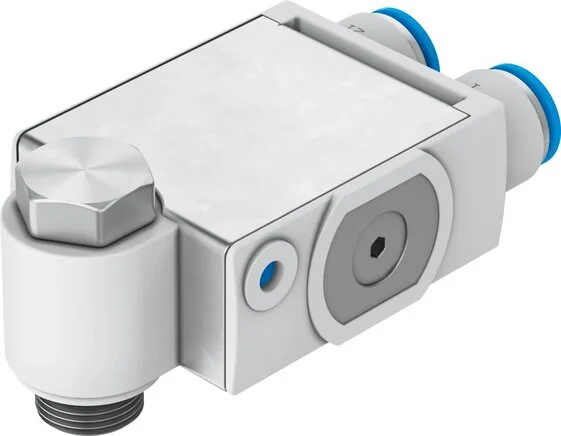

Festo - VFOF-LE-BAH-G14-Q8-1927030 - Throttle Check Valve

SKU: festo-vfof-le-bah-g14-q8-1927030

Browse all parts
Festo - VFOF-LE-BAH-G14-Q8-1927030 - Throttle Check Valve

€143.72€122.84 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€143.72

Brand
Festo
Material Note
RoHs compliant
Actuation Type
Manually
Can Be Rotated
360 deg/no permanent tilt permitted
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Material
ES-BE
PBT
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Exhaust air flow control return function
Setting Element
hexagon socket
Sleeve Material
Aluminium wrought alloy
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Banjo Bolt Material
Aluminium wrought alloy
Installation Position
arbitrary
Shifting Time On (ms)
8
Control Pressure (MPa)
0,2 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-8
Pneumatic Connection 2
G1/4
Shifting Time Off (ms)
11
Manual Venting Function
tentative
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,02 to 1
Ambient Temperature (°C)
-10 to 60
Control Air 21 Connection
QS-8
Regulation Screw Material
Brass
Nominal Tightening Torque (Nm)
10
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Tolerance To Nominal Tightening Torque
± 20 %
Actuation Type Controlled Feedback Function
pneumatic
Normal Nominal Flow In One-way Flow Control
590
Normal Nominal Flow In Check Valve Direction
310 to 540
Permitted Actuation Moment Regulation Disc (Nm)
1
Operating Pressure Complete Temperature Range (MPa)
0,02 to 1
Normal Nominal Flow Actuated In Check Valve Direction
315 to 540
Normal Nominal Flow Not Actuated In The Check Valve Direction
310 to 540
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
940
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi) Actuated
830 to 1000
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi) Non-actuated
840 to 1000
EAN
4052568250126
Manufacturer
Festo
