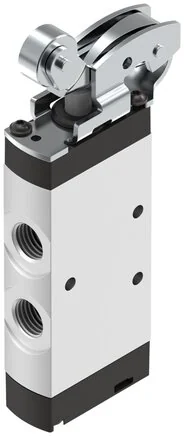

Festo - VMEF-R-M52-E-N14-8047099 - Roller Lever Valve

SKU: festo-vmef-r-m52-e-n14-8047099

Browse all parts
Festo - VMEF-R-M52-E-N14-8047099 - Roller Lever Valve

€229.86€196.46 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€229.86

Brand
Festo
Overlap
positive Überdeckung
Reset Mode
Pneumatic spring
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
Mechanical
Cam Angle (°)
30
Cover Material
PA reinforced
Fastening Type
With throughway bores
Flow Direction
Reversible
Seals Material
NBR
Valve Function
5/2 monostable
Build Width (mm)
20
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Sealing Principle
Soft
Nominal Width (mm)
7
Actuating Force (N)
38,0
Construction Set Up
Roller lever
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
1/4 NPT
Pneumatic Connection 2
1/4 NPT
Pneumatic Connection 3
1/4 NPT
Pneumatic Connection 4
1/4 NPT
Pneumatic Connection 5
1/4 NPT
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
-0,095 to 1
Ambient Temperature (°C)
-10 to 60
Actuation Attachment Material
Zinc plated steel
Max. Stroke Limit (Hard) (mm)
11,6
Max. Switching Frequency (Hz)
3
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Actuation Speed For Side Actuation (m/s)
1,4
Standard Nominal Flow Rate (Standardised To DIN 1343)
1200
EAN
4052568435189
Manufacturer
Festo
