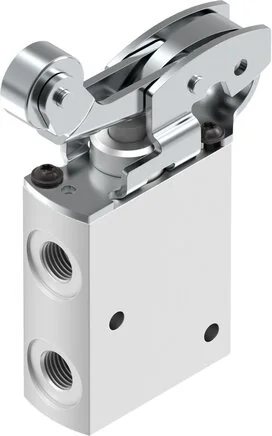

Festo - VMEF-RT-M32-M-N18-8047098 - Roller Lever Valve

SKU: festo-vmef-rt-m32-m-n18-8047098

Browse all parts
Festo - VMEF-RT-M32-M-N18-8047098 - Roller Lever Valve

€130.55€111.58 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€130.55

Brand
Festo
Overlap
Nullüberdeckung
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
Mechanical
Cam Angle (°)
30
Fastening Type
With throughway bores
Flow Direction
Reversible
Seals Material
NBR
Valve Function
3/2 monostable
Build Width (mm)
20
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Sealing Principle
Soft
Nominal Width (mm)
5,6
Actuating Force (N)
35,2
Construction Set Up
Plate seat
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
1/8 NPT
Pneumatic Connection 2
1/8 NPT
Pneumatic Connection 3
1/8 NPT
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
-0,095 to 1
Ambient Temperature (°C)
-10 to 60
Actuation Attachment Material
Zinc plated steel
Max. Stroke Limit (Hard) (mm)
6,3
Max. Switching Frequency (Hz)
3
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Actuation Speed For Side Actuation (m/s)
1,4
Standard Nominal Flow Rate (Standardised To DIN 1343)
750
EAN
4052568435172
Manufacturer
Festo
