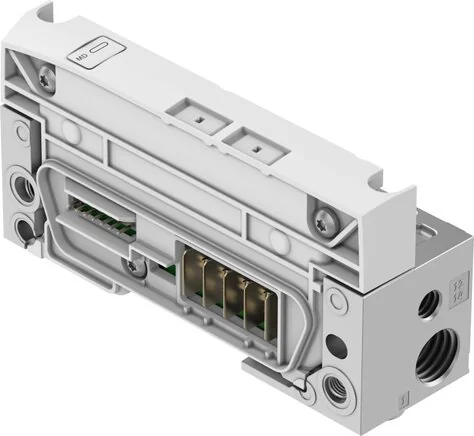

Festo - VMPA-AP-EPL-E-8137154 - Pneumatic Connection

SKU: festo-vmpa-ap-epl-e-8137154

Browse all parts
Festo - VMPA-AP-EPL-E-8137154 - Pneumatic Connection

€226.84€193.88 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€226.84

Brand
Festo
Width (mm)
34,1
Length (mm)
107,3
Material Note
RoHs compliant
Cover Material
PBT reinforced
Fastening Type
mit Durchgangsbohrung für Schraube M4
Seals Material
PU foam
Screws Material
Zinc-plated steel
Housing Material
Aluminium die casting
Protection Class
III
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Diagnosis Via LED
Diagnose pro Modul
Relative Humidity
Not condensing
Control Air Supply
external
Electrical Controls
AP-Schnittstelle
Integrated Function
recorded exhaust
Protection Category
IP67
Dimensions W x L x H
34,1 mm x 107,3 mm x 55,1 mm
Fuse (Short Circuit)
zusätzlich Schmelzsicherung
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pilot Air Port 12/14
M7
Installation Position
beliebig, auf H-Schiene: waagrecht
Max. Setup Height (m)
3.500
Module Code (Hex/dec)
0x3053/12371d
Over-voltage Category
II
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
G1/4
Degree Of Contamination
2
Nominal Altitude Of Use
<= 2000 m ASL (> 79,5 kPa)
Internal Cycle Time (ms)
1
Ambient Temperature (°C)
-20 to 50
Bearing Temperature (°C)
-20 to 70
Switch On Valve Terminals
Typ 32, MPA-FB-AP-VI
Reverse Polarity Protection
yes
Power Blackout Bridging (ms)
10
Corrosion Resistance Class KBK
1 - low corrosion stress
Communication Interface, Protocol
AP
Information About Protection Category
In mounted condition
Diagnostics Per Internal Communication
Unterspannung Elektronik/Sensoren
Permissible Voltage Fluctuation Of Load
± 25 %
Nominal Operating Voltage DC Of Load (V)
24
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Intrinsic Power Input Operating Voltage Electronics/sensors
typisch 35 mA
Potential Separation Between The Supply Voltages Electronics/sensor Technology And Load/valves
yes
EAN
4052568637750
Manufacturer
Festo
