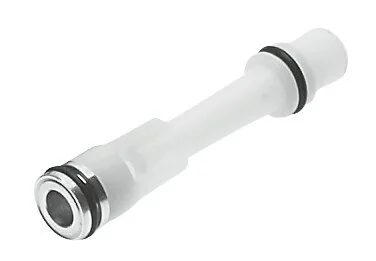

Festo - VN-07-H-547695 - Vacuum Suction Nozzle Cartridge

SKU: festo-vn-07-h-547695

Festo - VN-07-H-547695 - Vacuum Suction Nozzle Cartridge

€39.74€33.97 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€39.74

Brand
Festo
Max. Vacuum
92
Seals Material
NBR
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Jet Nozzle Material
Aluminium wrought alloy
Installation Position
arbitrary
Ejector Characteristic
hoher Unterdruck
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Capture Nozzle Material
POM
Medium Temperature (°C)
0 to 60
Operating Pressure (bar)
1 to 8
Ambient Temperature (°C)
0 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Width Laval Nozzle (mm)
0,7
Nominal Operating Pressure (bar)
6
Note On Operating And Control Medium
Oiled operation not possible
Operating Pressure For Max. Vacuum (bar)
4,4
Venting Time For Nominal Operating Pressure (s)
1,67
Max. Suction Volume Flow Rate Against Atmosphere
16,2
EAN
4052568051679
Manufacturer
Festo
