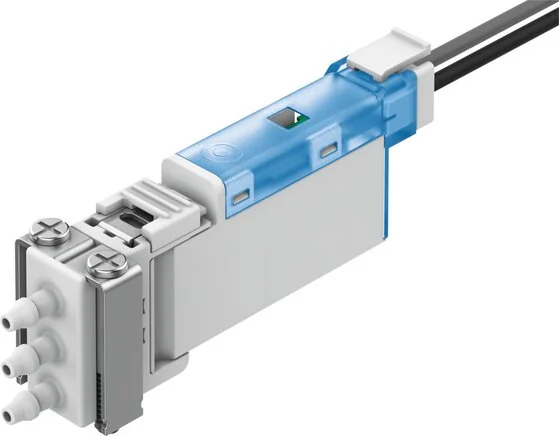

Festo - VOVK-BT6-M32C-MN-1H5ZP-B3F-8122782 - Solenoid Valve

SKU: festo-vovk-bt6-m32c-mn-1h5zp-b3f-8122782

Browse all parts
Festo - VOVK-BT6-M32C-MN-1H5ZP-B3F-8122782 - Solenoid Valve

€54.22€46.34 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€54.22

Brand
Festo
Cv Value
0,006
Reset Mode
Mechanical spring
Control Type
Electrical
Material Note
RoHs compliant
Power-on Time
100 % innerhalb von 500 h
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Reversible
Valve Function
3/2 closed monostable
Spring Material
High-alloyed stainless steels
Build Width (mm)
5,9
Exhaust Function
Can be throttled
Housing Material
PBT
Operating Medium
Druckluft nach ISO 8573-1:2010 [6:4:1]
Relative Humidity
70%
Sealing Principle
Soft
Nominal Width (mm)
0,36
Construction Set Up
Poppet valve with reset spring
Protection Category
IP40
Electrical Connection
cable
Hand Assist Actuation
None
Installation Position
arbitrary
Shifting Time On (ms)
13
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
für Schlauch Innen-Ø 1,5 mm
Pneumatic Connection 3
für Schlauch Innen-Ø 1,5 mm
Shifting Time Off (ms)
6
Medium Temperature (°C)
5 to 50
Operating Pressure (MPa)
-0,1 to 0,7
Ambient Temperature (°C)
5 to 50
Max. Switching Frequency (Hz)
10
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Electrical Power Consumption (W)
0,5
Nominal Operating Voltage DC (V)
24
Information About Operating Pressure
Betriebsdruck Anschluss 3: nur -1 to 0 bar
Note On Operating And Control Medium
Oiled operation not possible
Standard Nominal Flow Rate (Standardised To DIN 1343)
5,5
EAN
4052568550844
Manufacturer
Festo
