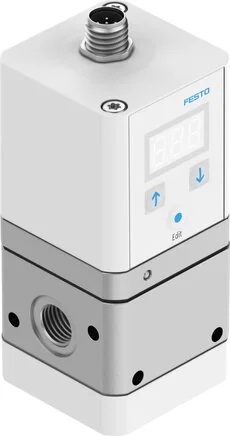

Festo - VPPE-3-1-1/8-2-MR-E1-F1A-8168527 - Proportional Pressure Regulating Valve

SKU: festo-vppe-3-1-1-8-2-mr-e1-f1a-8168527

Browse all parts
Festo - VPPE-3-1-1/8-2-MR-E1-F1A-8168527 - Proportional Pressure Regulating Valve

€788.09€673.58 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€788.09

Brand
Festo
Report
Modbus RTU
KC-mark
KC-EMV
Linearity
1
Hysteresis
1
Permission
c UL us - Listed (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Display Type
3-stellig
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Total Accuracy
1.5 %FS
Valve Function
3-way proportional pressure regulator valve
Reproducibility
1
Residual Ripple
10%
Housing Material
Aluminium, pulverbeschichtet
Operating Medium
Inerte Gase
Sealing Principle
Soft
Certification Body
UL E322346
Construction Set Up
Pre-controlled membrane control valve
Protection Category
IP65
Setpoint Value Input
Digital
Electrical Connection
Plug
Installation Position
Preferentially standing
Max. Power Input (mA)
160
Value Range MPa (Bit)
0 to 200
Value Range bar (Bit)
0 to 2000
Value Range psi (Bit)
0 to 290
Input Pressure 1 (bar)
3 to 4
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Serial Interface, Type
RS 485-A
Temperature Coefficient
0,04
Medium Temperature (°C)
10 to 50
Short Circuit Resistance
for all electrical connections
Ambient Temperature (°C)
0 to 60
Nominal Width Venting (mm)
2,5
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (MPa)
0,002
Nominal Width Ventilation (mm)
5
Operating Voltage Range DC (V)
21.6 to 26.4
Pressure Regulation Range (MPa)
0,002 to 0,2
Note On Operating And Control Medium
Oiled operation not possible
Max. Electrical Power Consumption (W)
4,2
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Standard Nominal Flow Rate (Standardised To DIN 1343)
310
EAN
4052568635473
Manufacturer
Festo
