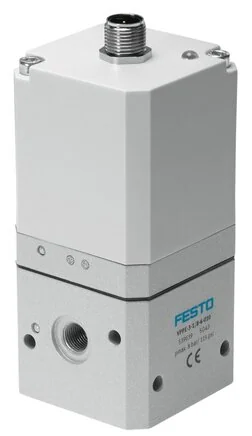

Festo - VPPE-3-1/8-6-010-539639 - Proportional Pressure Regulating Valve

SKU: festo-vppe-3-1-8-6-010-539639

Browse all parts
Festo - VPPE-3-1/8-6-010-539639 - Proportional Pressure Regulating Valve

€680.96€582.02 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€680.96

Brand
Festo
KC-mark
KC-EMV
Linearity
1
Hysteresis
2,5
Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With throughway bores
Total Accuracy
2,25 %FS
Valve Function
3-way proportional pressure regulator valve closed
Reproducibility
0,5
Residual Ripple
10%
Housing Material
Aluminium wrought alloy
Operating Medium
Inerte Gase
Sealing Principle
Soft
Certification Body
UL E322346
Diaphragm Material
NBR
Construction Set Up
Pre-controlled piston control valve
Protection Category
IP65
Electrical Connection
runde Bauform
Installation Position
vorzugsweise senkrecht
Max. Power Input (mA)
150
Shifting Time On (ms)
550
TARGET / ACTUAL Value
Voltage type 0 - 10 V
Input Pressure 1 (bar)
6 to 8
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Shifting Time Off (ms)
1300
Temperature Coefficient
0,04
Medium Temperature (°C)
10 to 50
Operating Pressure (MPa)
0,8
Short Circuit Resistance
for all electrical connections
Ambient Temperature (°C)
10 to 50
Nominal Width Venting (mm)
2,5
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (MPa)
0,015
Nominal Width Ventilation (mm)
5
Operating Voltage Range DC (V)
21.6 to 26.4
Pressure Regulation Range (MPa)
0,015 to 0,6
Note On Operating And Control Medium
Oiled operation not possible
Max. Electrical Power Consumption (W)
3,6
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
850
EAN
4052568177836
Manufacturer
Festo
