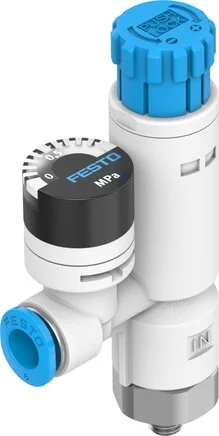

Festo - VRPA-LM-M5-Q4-8086007 - Pressure Regulator

SKU: festo-vrpa-lm-m5-q4-8086007

Browse all parts
Festo - VRPA-LM-M5-Q4-8086007 - Pressure Regulator

€76.86€65.69 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€76.86

Brand
Festo
Material Note
RoHs compliant
Stud Material
Nickel-plated brass
Actuation Type
Manually
Can Be Rotated
360 deg/no permanent tilt permitted
Fastening Type
Screwable
Setting Element
Rotary button with stopper
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Pressure Display
with pressure gauge
Seal Type On Stud
gasket
Controller Function
mit Rückstromverhalten
Installation Position
arbitrary
Material Static Seals
NBR
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
M5
Pneumatic Connection 2
QS-4
Ambient Temperature (°C)
0 to 60
Nominal Tightening Torque (Nm)
0,8
Pressure Regulation Range (MPa)
0.1 to 0.8
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Tolerance To Nominal Tightening Torque
± 20 %
Standard Nominal Flow Rate (Standardised To DIN 1343)
80
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568458713
Manufacturer
Festo
