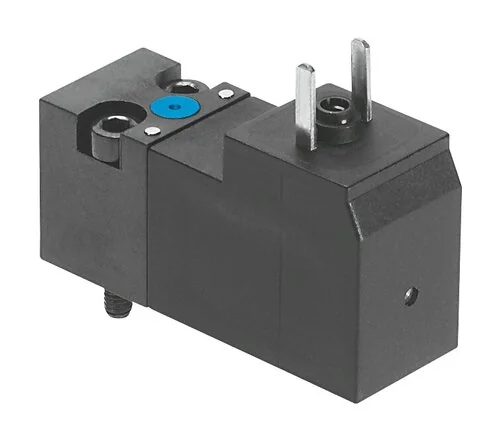

Festo - VSCS-B-M32-MH-WA-5C1-546257 - Solenoid Valve

SKU: festo-vscs-b-m32-mh-wa-5c1-546257

Browse all parts
Festo - VSCS-B-M32-MH-WA-5C1-546257 - Solenoid Valve

€50.35€43.03 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€50.35

Brand
Festo
Overlap
negative Überdeckung
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Build Width (mm)
15
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Protection Category
IP65
Complies To Standard
ISO 15218
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
acc. to DIN EN 175301-803
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
6
LABS (PWIS) Conformity
VDMA24364-C1-L
Pneumatic Connection 1
Connection plate
Pneumatic Connection 2
Connection plate
Pneumatic Connection 3
Connection plate
Shifting Time Off (ms)
6
Medium Temperature (°C)
-10 to 50
Operating Pressure (MPa)
0 to 1
Ambient Temperature (°C)
-10 to 50
Coil Characteristic Value
12 V DC: 1,8 W
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
-1,5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
18
EAN
4052568092252
Manufacturer
Festo
